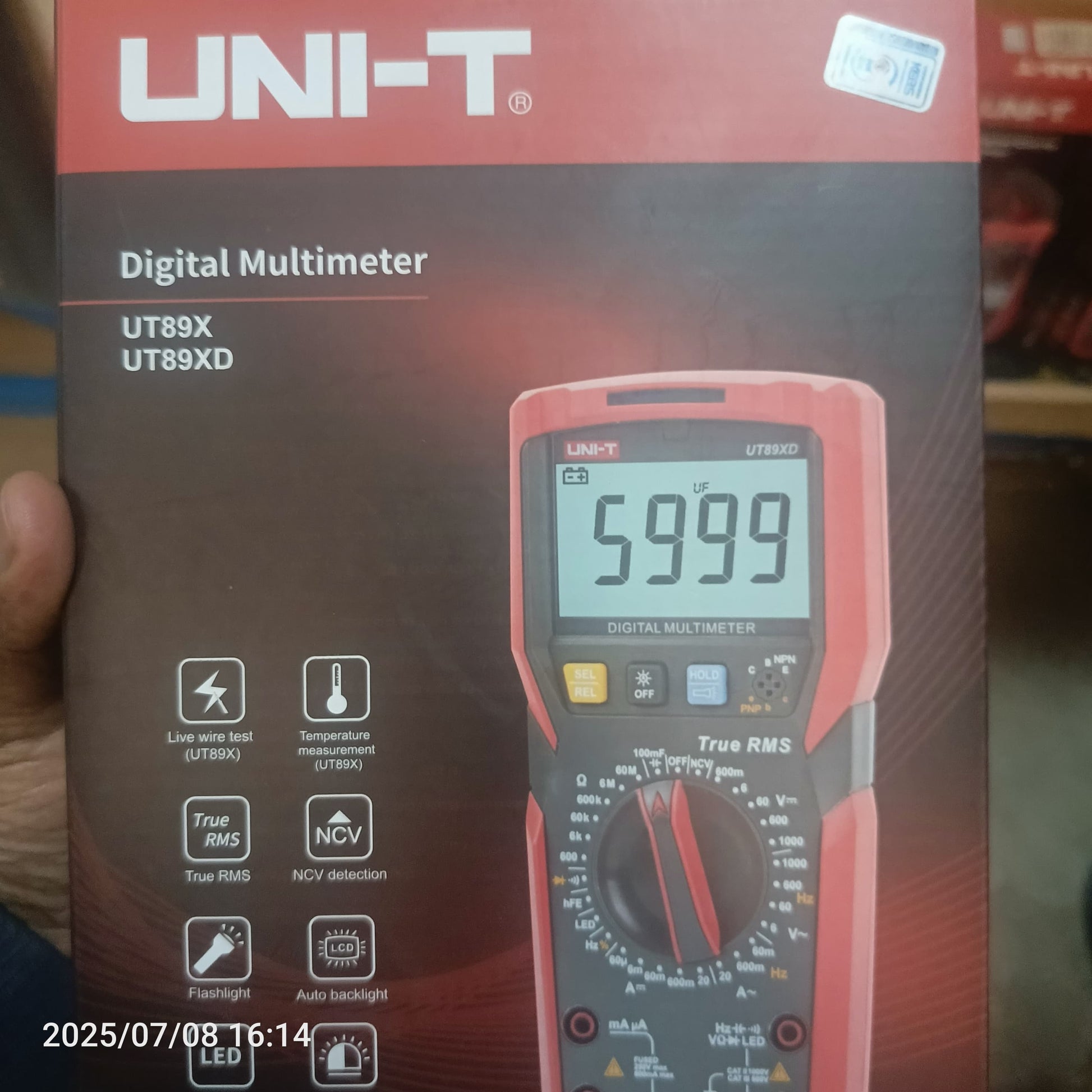

UNI-T UT89XD Digital Multimeter

KSh26,000.00
KSh26,000.00
Sale Sold out
Shipping calculated at checkout.

UNI-T UT89XD Digital Multimeter – Specifications

📐 General Features:

  • Display Count: 6,000

  • True RMS: Yes (AC voltage and current)

  • Auto/Manual Range: Yes

  • Backlight: Yes (with screen hold)

  • Flashlight: Built-in LED torch

  • Data Hold: Yes

  • Relative Mode: Yes

  • MAX/MIN Recording: Yes

  • Low Battery Indicator: Yes

  • NCV (Non-Contact Voltage Detection): Yes (with buzzer & LED)

  • Live Wire Detection (L test): Yes

  • Buzzer: Audible continuity alert

🔋 Measurement Ranges:

Function Range Accuracy
DC Voltage 600mV – 1000V ±(0.5% + 2 digits)
AC Voltage (True RMS) 600mV – 750V ±(0.8% + 3 digits)
DC Current 600μA – 10A ±(1.0% + 3 digits)
AC Current (True RMS) 600μA – 10A ±(1.5% + 3 digits)
Resistance 600Ω – 60MΩ ±(0.8% + 2 digits)
Capacitance 1nF – 100mF ±(4.0% + 5 digits)
Frequency 10Hz – 10MHz ±(0.1% + 3 digits)
Temperature (K-Type) -40°C to 1000°C ±(1.0% + 3°C)
Diode Test Yes 2.0V forward bias limit
Continuity Test Yes (Buzzer <50Ω)

⚡ Safety & Protection:

  • Fuse Protection: Yes – Fast-blow fuse 10A & mA ranges

  • Input Protection: Yes (PTC & fuse protected)

  • Safety Rating: CAT III 1000V, CAT IV 600V

  • Overload Protection: Present on all ranges

💡 Additional Features:

  • Work Light: Built-in LED flashlight for dark areas

  • Display Type: Large LCD with backlight

  • NCV & Live Line Detection: With buzzer and LED alert

  • Battery Test: Yes (1.5V, 9V, 12V support)

  • Auto Power Off: Yes (with disable option)

📦 Included Accessories:

  • UT89XD Digital Multimeter

  • Test Leads

  • K-Type Thermocouple

  • Instruction Manual

  • 2 × AA Batteries

  • Protective Case (varies by supplier)

📏 Physical Characteristics:

  • Dimensions: 190mm × 89mm × 53mm

  • Weight: Approx. 390g (with batteries)

  • Power Supply: 2 × 1.5V AA batteries
