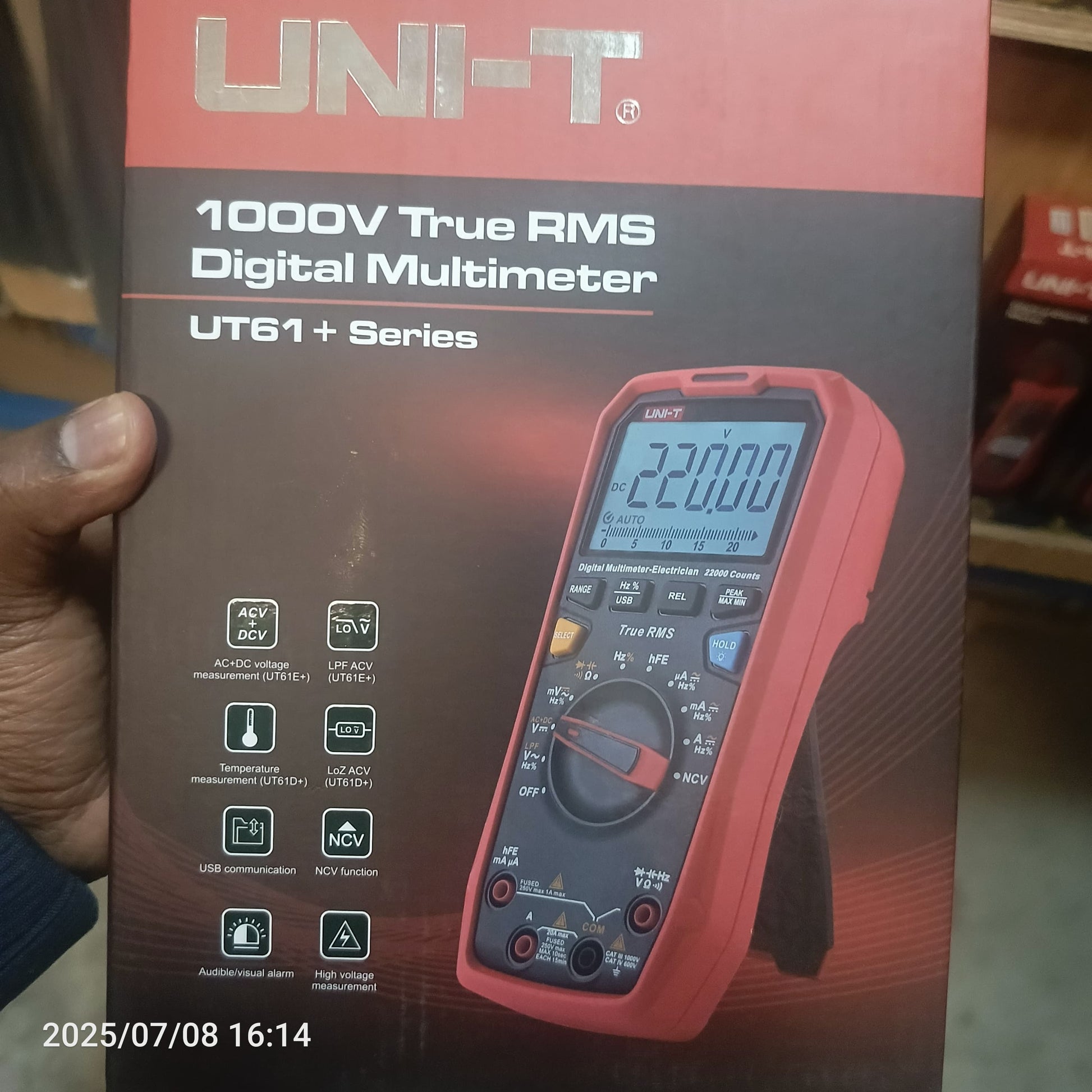

UNI-T UT61D True RMS Digital Multimeter
Couldn't load pickup availability
UNI-T UT61D+ True RMS Digital Multimeter – Specifications
📐 General Features:
-
Display Count: 6,000 (Large LCD)
-
Auto/Manual Ranging: Yes
-
True RMS Measurement: Yes (AC Voltage/Current)
-
Backlight: Yes (White LED)
-
Data Hold: Yes
-
Relative Mode: Yes
-
Max/Min Mode: Yes
-
Auto Power Off: Yes (approx. 15 minutes)
-
Low Battery Indicator: Yes
-
Input Protection: Yes
-
Bar Graph Display: Yes (Analog-style)
-
Sampling Rate: Approx. 3 times/sec
🔋 Measurement Ranges:
Function | Range | Accuracy |
---|---|---|
DC Voltage | 600mV – 1000V | ±(0.5% + 2 digits) |
AC Voltage (TRMS) | 600mV – 750V | ±(0.8% + 10 digits) |
DC Current | 600μA – 10A | ±(1.0% + 3 digits) |
AC Current (TRMS) | 600μA – 10A | ±(1.5% + 3 digits) |
Resistance | 600Ω – 60MΩ | ±(0.8% + 2 digits) |
Capacitance | 40nF – 100mF | ±(3.5% + 10 digits) |
Frequency | 10Hz – 10MHz | ±(0.1% + 3 digits) |
Temperature (K-Type) | -40°C to 1000°C | ±(1.0% + 3°C) |
Duty Cycle | 0.1% – 99.9% | ±(1.2% + 2 digits) |
⚡ Safety & Build:
-
Input Protection: 1000V Fuse & Internal PTC
-
Safety Rating: CAT III 1000V, CAT IV 600V
-
Display Type: LCD with 61-segment bar graph
-
Build Quality: Durable ABS casing with integrated holster
🔌 Additional Features:
-
NCV (Non-Contact Voltage Detection): No
-
RS232/USB Interface: USB (with software for logging)
-
PC Connectivity: Yes (via USB interface)
-
Continuity Test: Audible buzzer <50Ω
-
Diode Test: Yes
📦 Package Includes:
-
UT61D+ Multimeter
-
Test Leads
-
USB Data Cable
-
CD Software
-
K-Type Thermocouple
-
User Manual
-
Protective Carrying Case
-
9V Battery
📏 Physical Specs:
-
Weight: Approx. 390g (with battery)
-
Dimensions: 182mm × 90mm × 47.5mm
-
Battery Type: 1 x 9V (6F22)
