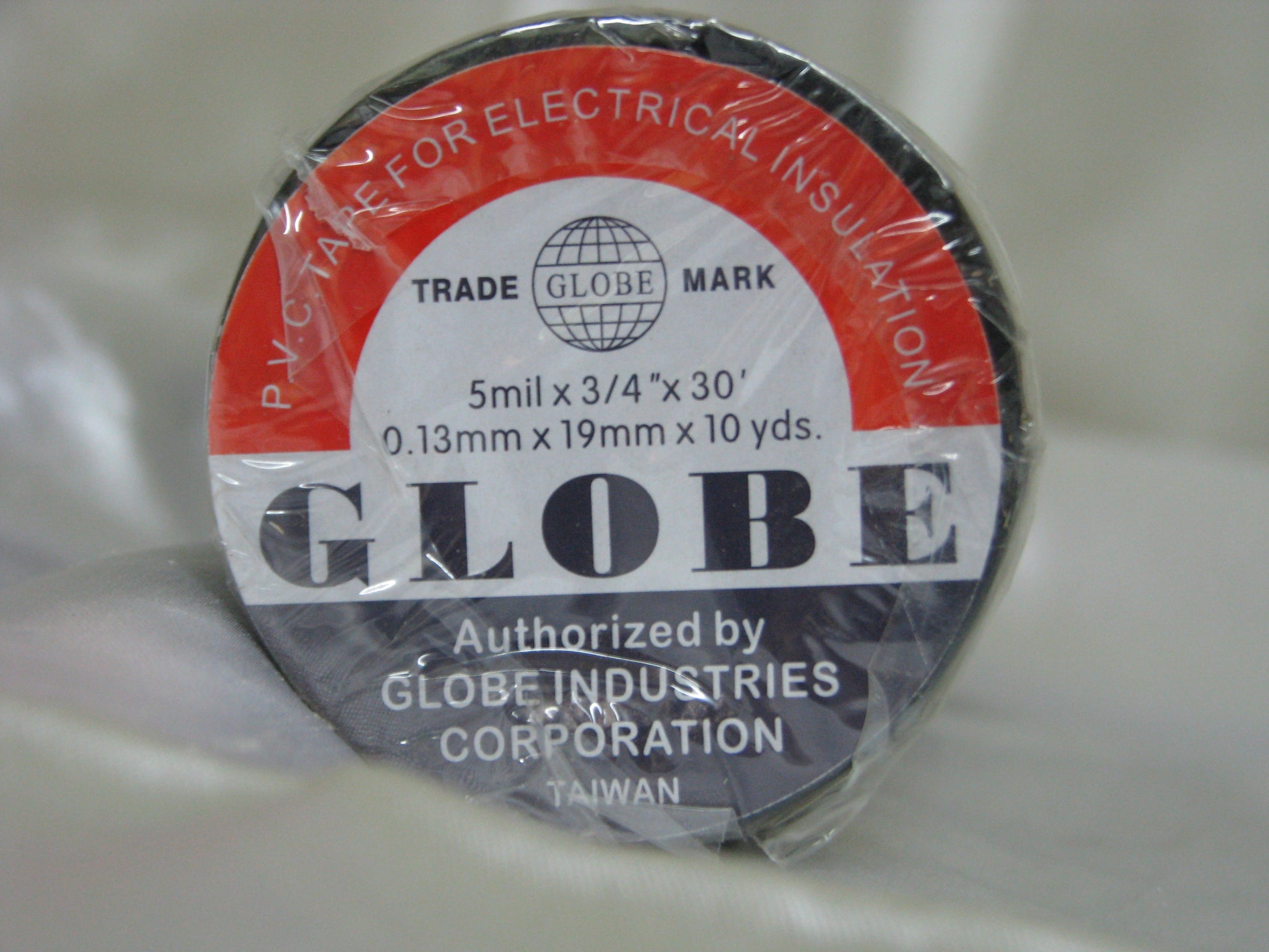

Sunup | Globe Insulating Tape

Professional Electrical Insulation Tape

The Sunup Insulating Tape is a high-quality PVC electrical tape designed for insulating electrical wires, cables, and connections. Providing reliable electrical insulation and protection, this tape is essential for electrical installations, repairs, and maintenance work in residential, commercial, and industrial applications.

Key Features

• Excellent electrical insulation – Protects against electrical shock and short circuits
• High-quality PVC material – Durable, flexible, and conformable to irregular surfaces
• Strong adhesive backing – Secure bonding that resists peeling and unwinding
• Weather resistant – Withstands moisture, UV exposure, and temperature variations
• Flame retardant – Self-extinguishing properties enhance safety
• Easy to tear – Hand-tearable for quick application without scissors
• Color-coded options – Available in multiple colors for phase identification and organization
• Long-lasting performance – Maintains adhesion and insulation properties over time

Technical Specifications

• Material: Premium PVC (Polyvinyl Chloride)
• Width: 18mm - 19mm (standard)
• Length: 10 meters - 20 meters per roll (typical)
• Thickness: 0.13mm - 0.18mm
• Voltage Rating: Up to 600V
• Temperature Range: -10°C to +80°C
• Adhesive: Rubber-based pressure-sensitive adhesive
• Flame Retardant: Self-extinguishing
• Colors: Black, red, blue, yellow, green, white (typical)

Applications

Essential for electrical work including wire splicing, cable bundling, color-coding electrical circuits, insulating exposed wires, repairing damaged cable insulation, securing wire connections, phase identification, and general electrical maintenance. Suitable for residential wiring, commercial installations, automotive electrical work, appliance repairs, and industrial electrical systems.

Usage Instructions

Clean and dry the surface before application. Start wrapping from the base of the connection, overlapping each turn by approximately 50% for optimal insulation. Stretch the tape slightly while wrapping to activate the adhesive and ensure conformability. Complete with at least two full layers for adequate insulation. Press firmly to secure the final end.

Safety & Compliance

Sunup insulating tape meets international electrical safety standards for voltage rating and flame resistance. Always ensure power is disconnected before applying tape to electrical connections. Use appropriate tape color for phase identification according to local electrical codes.

Color Coding Guide

• Black – General purpose, neutral wires, low voltage
• Red – Live/hot wires, secondary phase
• Blue – Neutral wires in some regions, control circuits
• Yellow – Earth/ground wires (when combined with green)
• Green – Earth/ground wires, protective conductors
• White – Neutral wires, general marking

Professional Quality: Sunup electrical tape delivers reliable insulation and long-lasting adhesion for professional electricians and DIY electrical work. The conformable PVC material wraps smoothly around irregular shapes and provides consistent protection.

Electrical Essential: A must-have for any electrical toolkit. Keep multiple colors on hand for proper phase identification and organized electrical installations.

Important: This tape is for electrical insulation up to 600V. For higher voltage applications, use appropriate specialized insulation materials. Always follow local electrical codes and safety regulations.
