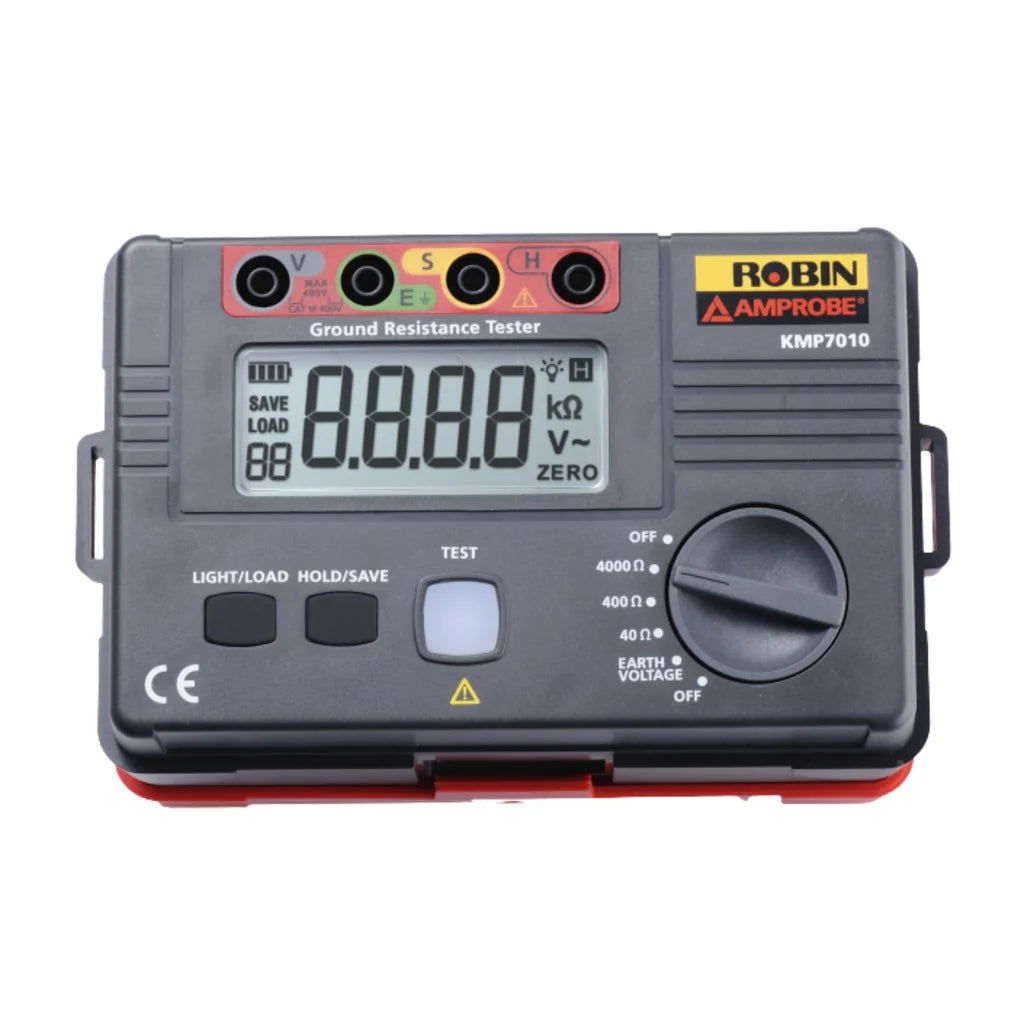

Fluke KMP 7010 Ground Resistance Tester (Selectable Deflibirator)

Fluke Amprobe KMP 7010 – Ground Resistance Tester

Earth Resistance Measurement

• Supports 3-point (fall-of-potential) and 2-point testing methods

• Measurement ranges:
  • 0.00–40.00 Ω
  • 0.0–400.0 Ω
  • 0–4000 Ω

• Accuracy:
  • ±(2% of reading + 3 digits) for 400 Ω and 4000 Ω ranges
  • ±(2% + 20 digits) in 40 Ω range

Voltage Measurement

• Measures AC voltage up to 400 V

• Accuracy: ±(1% + 6 digits) at 50/60 Hz

Display & Memory

• Large backlit LCD display for improved visibility

• Data hold function to freeze the reading

• Memory stores up to 20 measurements for review

Features

• Voltage detection to avoid errors from stray voltages

• Low battery indicator

• Compliant with BS7671 IEE 17th Edition

• Meets IEC/EN 61557-1 and 61557-5 standards

Safety & Environmental Ratings

• Safety Category: CAT III 400 V

• Ingress Protection: IP40

• Pollution Degree: 2

Power Supply & Operating Conditions

• Powered by 6 AA batteries (1.5 V)

• Operating temperature: +5 °C to +40 °C

• Operating humidity: ≤80% RH, non-condensing

• Storage temperature: –20 °C to +60 °C

• Storage humidity: ≤90% RH, non-condensing when unpacked

Physical Characteristics

• Dimensions: 160 × 101 × 71 mm

• Weight: Approx. 500 g (including batteries)

Included Accessories

• Main unit

• Test lead set for 3-point method

• Auxiliary ground rods

• Test lead set for 2-point method

• 6 × AA batteries

• User manual

• Carrying case and strap

✅ Quick Summary Table

This tester is well-suited for on-site ground resistance evaluations in electrical installations, construction, and maintenance environments. Let me know if you'd like similar specifications for clamp-type ground testers or more advanced models like the Fluke 1625 series.
