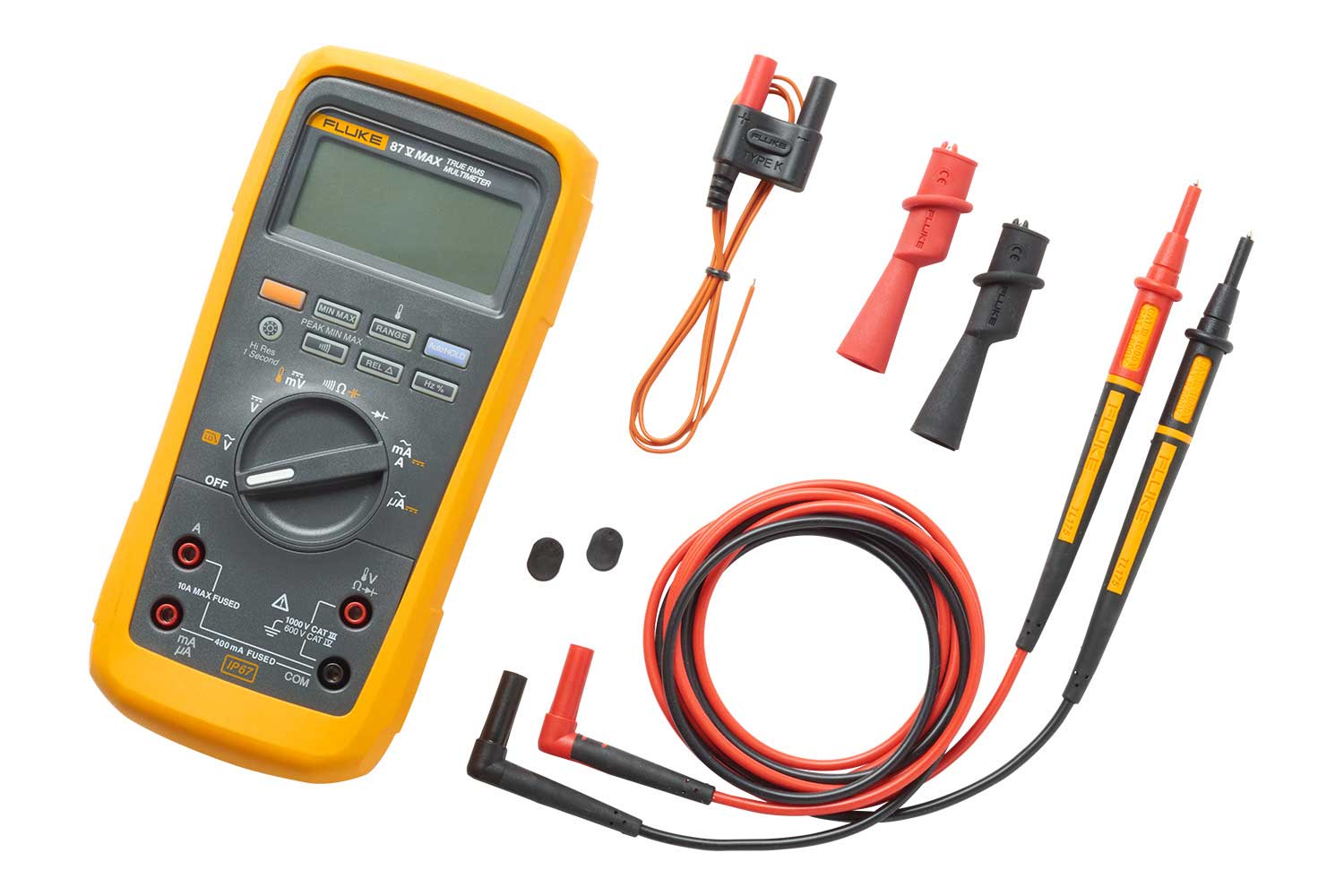

Fluke 87V MAX TRM

Fluke 87V MAX – Specifications

Electrical Measurements

• DC Voltage
  • Range: 0.1 mV to 1000 V
  • Accuracy: ±(0.05% + 1)
  • Resolution: 0.1 mV

• AC Voltage (True‑RMS)
  • Range: 0.1 mV to 1000 V
  • Accuracy: ±(0.7% + 4)
  • Bandwidth: Up to 20 kHz with low-pass filter (3 dB @ 1 kHz)
  • Resolution: 0.1 mV

• DC Current
  • Range: 0.1 µA to 10 A (20 A for 30 seconds max)
  • Accuracy: ±(0.2% + 2)
  • Resolution: 0.1 µA

• AC Current (True‑RMS)
  • Range: 0.1 µA to 10 A (20 A for 30 seconds)
  • Accuracy: ±(1.0% + 2)
  • Resolution: 0.1 µA

• Resistance
  • Range: 0.1 Ω to 50 MΩ
  • Accuracy: ±(0.2% + 1)
  • Resolution: 0.1 Ω

• Capacitance
  • Range: 0.01 nF to 9999 µF
  • Accuracy: ±(1% + 2)
  • Resolution: 0.01 nF

• Frequency
  • Range: 0.5 Hz to 199.99 kHz
  • Accuracy: ±(0.005% + 1)
  • Resolution: 0.01 Hz

• Duty Cycle
  • Range: 0.0% to 99.9%
  • Accuracy: ±(0.2% per kHz + 0.1%)
  • Resolution: 0.1%

• Temperature Measurement
  • Full range: –200 °C to 1090 °C (–328 °F to 1994 °F)
  • With included probe: –40 °C to +260 °C
  • Accuracy: ±(2.2 °C or 2%)

• Conductance
  • Range: Up to 60.00 nS
  • Accuracy: ±(1.0% + 10)
  • Resolution: 0.01 nS

• Diode Test
  • Test voltage: Up to ~2 V
  • Accuracy: ±(1% + 1)
  • Resolution: 0.001 V

Display & Interface

• Digital Display: 6000-count standard, 19,999-count high-resolution mode

• Analog Bar Graph: 32 segments

• Update Rates: Digital – 4/sec; Bar graph – 40/sec

• Backlight: Two-level backlight with illuminated keypad

Mechanical & Environmental Features

• Ingress Protection: IP67 (dustproof and waterproof)

• Drop Test: Withstands drops from up to 4 meters

• Housing: Rugged casing with integrated holster and lead storage

• Battery Type: 3 × AA alkaline

• Battery Life: Approximately 800 hours (without backlight)

• Operating Temperature: –15 °C to +55 °C (short-term down to –40 °C)

• Storage Temperature: –40 °C to +60 °C

• Humidity (non-condensing):
  • 0%–90% up to 35 °C
  • 0%–70% between 35 °C–55 °C

• Altitude: Operates up to 2000 m

Dimensions & Weight

• Size (with holster): Approx. 21.5 × 10.1 × 6.0 cm

• Weight (with holster): Approx. 698.5 g

Key Features

• True-RMS measurements for accurate readings on non-linear loads

• Low-pass filter for VFD (variable frequency drive) measurements

• Built-in thermometer (with probe)

• Peak capture (250 µs), Min/Max/Avg recording

• Auto and manual ranging

• Relative (REL) mode for zeroing

• Touch Hold and standard data hold functions

• Input Alert for incorrect jack usage
