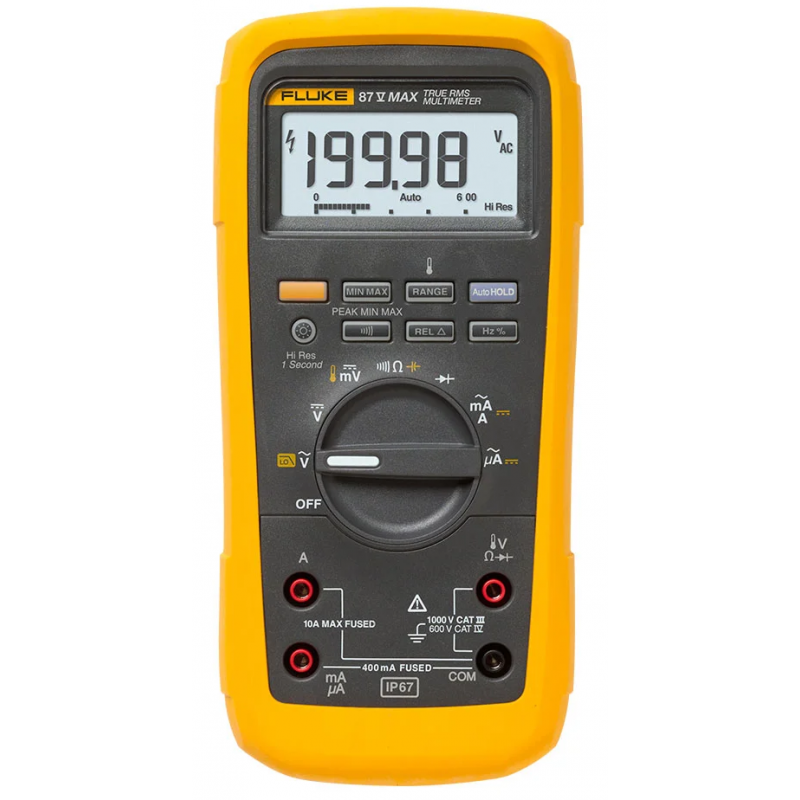

Fluke 87V Digital Industrial Multimeter
Couldn't load pickup availability
Fluke 87V – Specifications
Electrical Measurements
-
DC Voltage:
• Range: Up to 1000 V
• Accuracy: ±(0.05% + 1)
• Resolution: 10 µV -
AC Voltage (True‑RMS):
• Range: Up to 1000 V
• Accuracy: ±(0.7% + 2)
• Bandwidth: Up to 20 kHz (low-pass filter with 3 dB @ 1 kHz)
• Resolution: 0.1 mV -
DC Current:
• Range: Up to 10 A (20 A for 30 seconds max)
• Accuracy: ±(0.2% + 2)
• Resolution: 0.01 µA -
AC Current (True‑RMS):
• Range: Up to 10 A (20 A for 30 seconds)
• Accuracy: ±(1.0% + 2)
• Resolution: 0.1 µA -
Resistance:
• Range: Up to 50 MΩ
• Accuracy: ±(0.2% + 1)
• Resolution: 0.1 Ω -
Capacitance:
• Range: Up to 9,999 µF
• Accuracy: ±(1% + 2)
• Resolution: 0.01 nF -
Frequency:
• Range: Up to 200 kHz
• Accuracy: ±(0.005% + 1)
• Resolution: 0.01 Hz -
Duty Cycle:
• Range: 0.0% to 99.9%
• Accuracy: ±(0.2% per kHz + 0.1%)
• Resolution: 0.1% -
Temperature Measurement:
• With thermocouple probe: –40 °C to 260 °C
• Full range: –200 °C to 1090 °C
• Accuracy: ±(2.2 °C or 2%) -
Conductance:
• Range: Up to 60.00 nS
• Accuracy: ±(1.0% + 10)
• Resolution: 0.01 nS -
Diode Test:
• Test voltage: Up to 3 V
• Resolution: 1 mV
• Accuracy: ±(2% + 1)
Environmental & Safety Ratings
-
Operating Temperature: –20 °C to +55 °C
-
Storage Temperature: –40 °C to +60 °C
-
Relative Humidity (Non-condensing):
• 0%–90% up to 35 °C
• 0%–70% between 35–55 °C -
Altitude: Operational up to 2000 m
-
Safety Ratings:
• CAT III 1000 V
• CAT IV 600 V
• IEC 61010‑1 compliant
Mechanical & Display
-
Dimensions (with holster): Approx. 201 × 98 × 52 mm
-
Weight (with holster): Approx. 624 g
-
Display:
• 6000-count digital display (high-res up to 19,999 counts)
• Analog bar graph: 32 segments
• Update rate: Digital – 4/sec; Bar graph – 40/sec -
Battery Type: Standard 9 V
-
Battery Life: Approx. 400 hours (without backlight)
-
Drop Resistance: 1 m drop tested
-
Vibration Resistance: Meets MIL‑PRF‑28800 Class 2
Special Features
-
True-RMS for accurate readings on non-linear loads
-
Built-in thermometer (probe included)
-
Relative mode to remove lead resistance
-
Low-pass filter for accurate VFD signal measurement
-
Input Alert: audible warning if input jacks are incorrect
-
Auto and manual ranging
-
Min/Max/Avg recording
-
Data Hold and Auto Hold functions
-
Backlit display for low-light conditions
✅ Quick Summary Table
Feature | Specification |
---|---|
DC Voltage | Up to 1000 V (±0.05%) |
AC Voltage (True-RMS) | Up to 1000 V (±0.7%) |
DC Current | Up to 10 A (±0.2%) |
AC Current (True-RMS) | Up to 10 A (±1.0%) |
Resistance | Up to 50 MΩ (±0.2%) |
Capacitance | Up to 9,999 µF (±1%) |
Frequency | Up to 200 kHz (±0.005%) |
Temperature | –200 °C to 1090 °C |
Conductance | Up to 60 nS |
Diode Test | Up to 3 V |
Safety Rating | CAT III 1000 V / CAT IV 600 V |
Dimensions | 201 × 98 × 52 mm |
Weight | ~624 g with holster |
Battery Life | ~400 hours (no backlight) |
