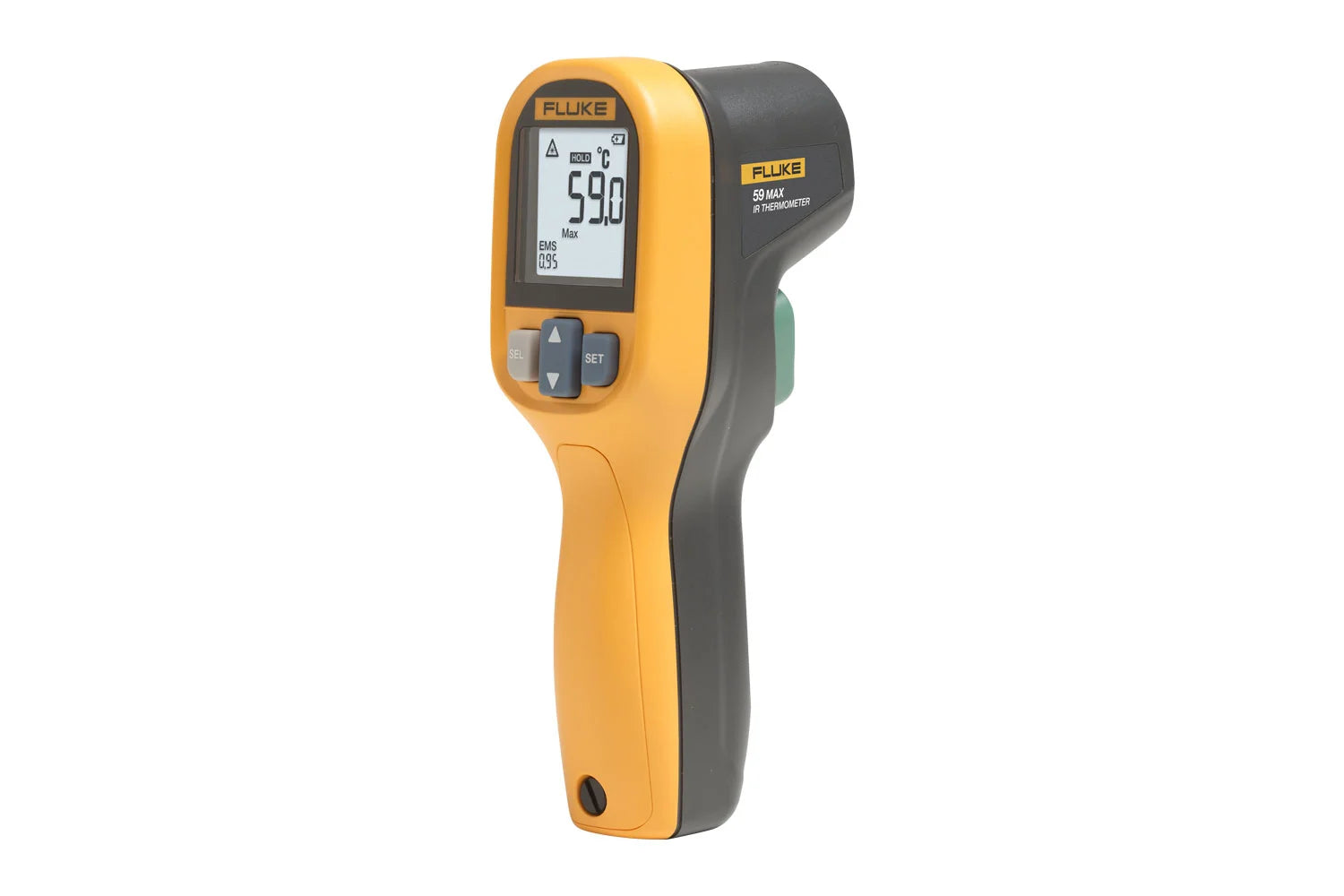

Fluke 59 MAX Infrared Thermometer
Couldn't load pickup availability
Fluke 59 MAX – Mini Infrared Thermometer Specifications
🌡 Temperature Measurement
-
Range: –30 °C to 350 °C (–22 °F to 662 °F)
-
Accuracy (at 23 °C ±2 °C):
-
≥ 0 °C: ±1.5 °C or ±1.5% of reading (whichever is greater)
-
< 0 °C to –10 °C: ±2.0 °C
-
< –10 °C: ±3.0 °C
-
≥ 32 °F: ±3.0 °F or ±1.5%
-
14 °F to < 32 °F: ±4.0 °F
-
< 14 °F: ±6.0 °F
-
-
Response Time: < 500 ms for 95% response
-
Spectral Response: 8–14 µm
-
Emissivity: Adjustable from 0.10 to 1.00
-
Optical Resolution (D:S): 8:1 (measured at 90% energy)
⚙ Display & Functions
-
Display Resolution: 0.1 °C or 0.2 °F
-
Selectable Functions: MAX, MIN, AVG, DIF readings
-
High/Low Alarms: Audible and visual alerts for set limits
-
Backlit LCD: For visibility in low-light environments
🔋 Power & Battery
-
Battery Type: 1 × AA (IEC LR06)
-
Battery Life: Approximately 12 hours (with laser and backlight on)
📏 Physical & Environmental
-
Dimensions: Approximately 156 × 80 × 50 mm
-
Weight: ~220 g
-
Operating Temperature: 0 °C to 50 °C (32–122 °F)
-
Storage Temperature: –20 °C to +60 °C (–4 to 140 °F), battery removed
-
Humidity: 10% to 90% RH, non-condensing at 30 °C
-
Altitude: Operating up to 2000 m, storage up to 12,000 m
-
Drop Resistance: 1 m (3.3 ft)
-
Ingress Protection: IP40
-
Shock/Vibration Compliance: Meets IEC 68-2-27 and IEC 68-2-6
✅ Quick Specs Table
Feature | Specification |
---|---|
Temperature Range | –30 °C to 350 °C (–22 °F to 662 °F) |
Accuracy | ±1.5 °C or ±1.5% (varies with temp) |
Response Time | < 500 ms |
Optical Resolution | 8:1 Distance-to-Spot ratio |
Emissivity Range | Adjustable: 0.10 to 1.00 |
Display Functions | MAX/MIN/AVG/DIF, Hi/Lo alarms |
Power Source | 1 × AA battery |
Operating Conditions | 0–50 °C; 10–90% RH |
Protection | IP40, 1 m drop test |
Weight & Dimensions | 220 g; 156 × 80 × 50 mm |
