Fluke 305 Clamp Meter
Couldn't load pickup availability
Fluke 305 Clamp Meter – Full Specifications
Electrical Measurement
-
AC current: Up to 999.9 A, accuracy ±2 % + 5 digits
-
AC voltage: 400 V / 600 V, accuracy ±1.5 % + 5 digits
-
DC voltage: 400 V / 600 V, accuracy ±1.5 % + 5 digits
-
Resistance: Up to 4 000 Ω, accuracy ±1 % + 5 digits
-
Continuity: Audible alert ≤ 70 Ω
Display & Functionality
-
Backlit LCD display for visibility in dim conditions
-
Data Hold function to freeze readings
-
Screen refresh rate: updates at over 2 readings per second
Physical & Safety Specs
-
Jaw opening size: 30 mm
-
Dimensions: ~208 × 58.5 × 28 mm
-
Weight: Lightweight and ergonomic for easy carrying
-
Safety categories: CAT III 600 V / CAT IV 300 V
Environment & Power
-
Operating temperature range: 0 °C to 40 °C
-
Typical operating humidity: Non-condensing (e.g. ≤ 90% RH at 10–30 °C)
-
Power source: 2 × AA batteries (included)

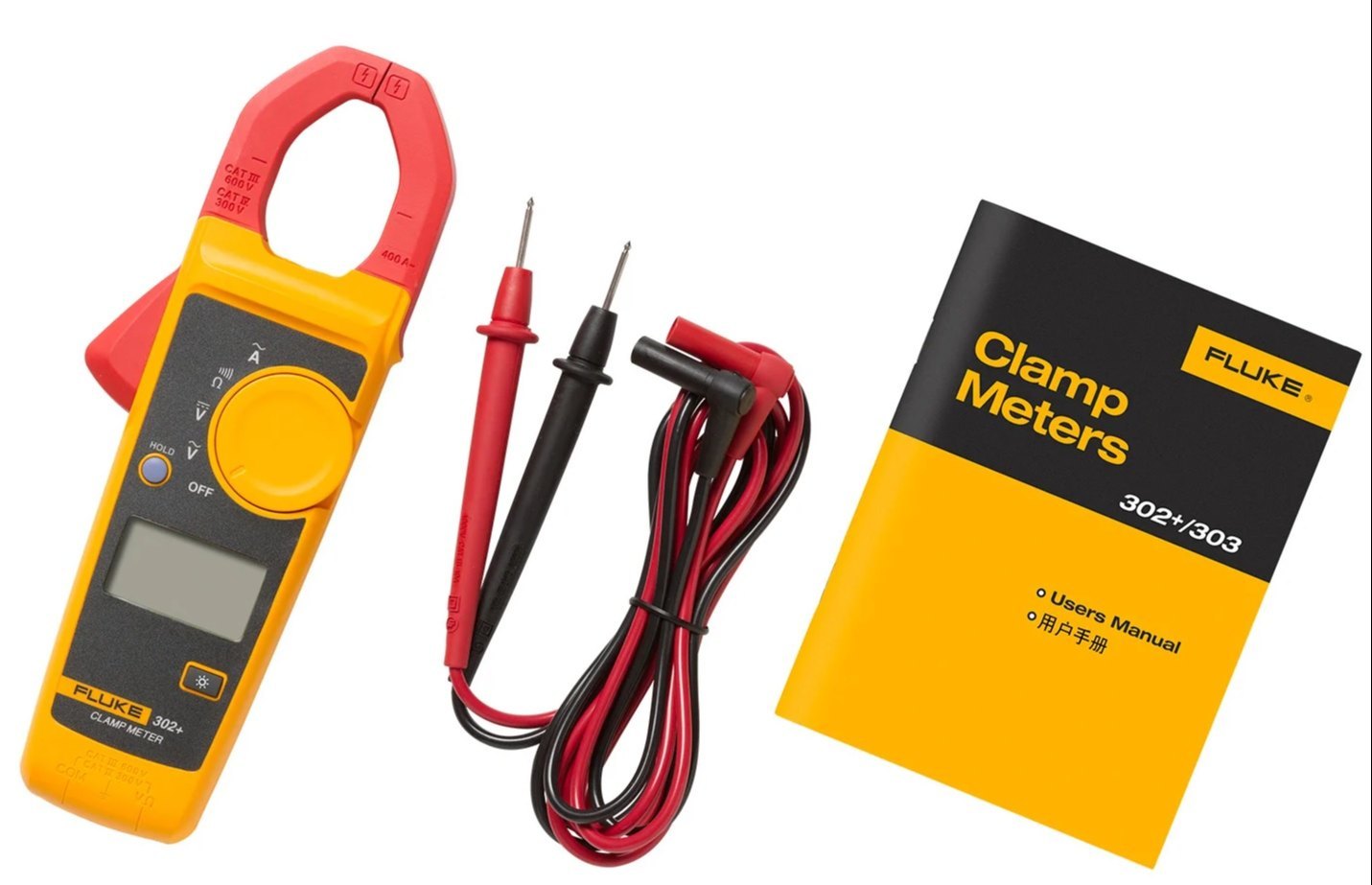

Included Accessories
-
Test leads: TL75 style (hard‑point probes, right‑angle banana plugs)
-
Other contents: Batteries, user manual
✅ Quick Summary Table
Feature | Specification |
---|---|
Maximum AC current | 999.9 A (±2 % + 5 digits) |
AC/DC Voltage Ranges | 400 / 600 V (±1.5 % + 5 digits) |
Resistance Range | Up to 4 kΩ (±1 % + 5 digits) |
Continuity Threshold | ≤ 70 Ω (audible alert) |
Display | Backlit LCD with data hold |
Jaw Opening | 30 mm |
Size (HxWxD) | ~208 × 58.5 × 28 mm |
Power | 2 × AA batteries |
CAT Safety Ratings | CAT III 600 V / CAT IV 300 V |
Operating Temperature | 0 °C to 40 °C |
Test Leads | TL75 type included |
