Fluke 1537 Insulation Tester
Couldn't load pickup availability
Fluke 1537 Insulation Tester – Key Specifications
General
-
Test voltages: 250 V, 500 V, 1000 V, 2500 V, with fine tuning in 100 V steps
-
Insulation resistance range: up to 500 GΩ
-
Short‑circuit current: up to 5 mA for stable, fast results
-
Automatic calculations: Polarization Index (PI), Dielectric Absorption Ratio (DAR), and Dielectric Discharge Rate (DD)
-
Measurement memory: Store up to ~1,300 tests at 2500 V (even more at lower voltages)
-
AC/DC voltage, resistance, and continuity: supported only on 1537 model
-
Continuity indication: both visual and audible
-
Timer mode: programmable up to 99 minutes (alerts in seconds)
Electrical Safety & Standards
-
Safety category: CAT IV 600 V
-
Compliance: IEC 61010‑1, IEC 61557‑1/2, IEC 61010‑2‑030, IEC 61010‑2‑034, EMC IEC 61326‑1/2
-
IP rating: IP40 for basic dust protection
Performance & Accuracy
-
Insulation resistance accuracy: ±5% in most ranges; higher ranges (50–500 GΩ) ±20%
-
Test voltage accuracy: –0% / +10% at 1 mA load current, ±3% +3 V typical
-
Leakage current: 1 nA to 2 mA, ±(20% + 2 nA)
-
Capacitance measurement: 0.01 µF to 2.00 µF at ±(15% reading + 0.03 µF)
Operating Conditions
-
Display size: ~73.5 × 104 mm
-
Power: 8 × AA alkaline batteries
-
Weight: ~1.3 kg
-
Dimensions: ~184 × 211 × 93 mm
-
Operating temp: –10 °C to +50 °C; storage –20 °C to +60 °C
-
Humidity: ≤80% RH at 10–30 °C; ≤50% at 30–50 °C
-
Altitude: usable up to 2,000 m (storage up to 12,000 m)

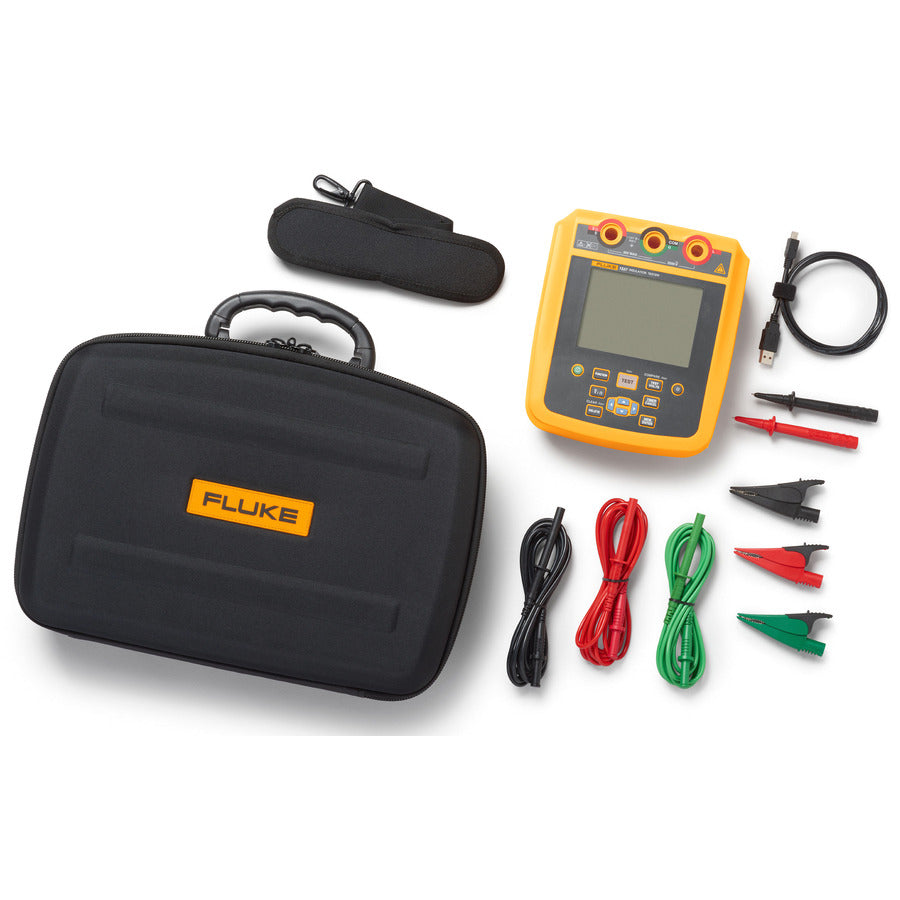

📦 What’s Included (1537)
-
Fluke 1537 insulation resistance tester
-
Test leads with alligator clips (red, black, green)
-
Straight probes (red, black)
-
USB connection cable
-
PC data‑management software
-
Soft carrying case
-
Capability to transfer and store test results
