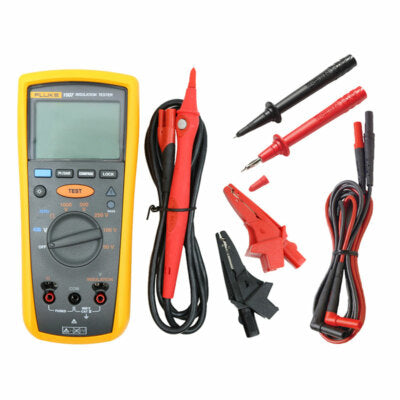

Fluke 1507 Insulation Resistance Tester
Couldn't load pickup availability
Fluke 1507 – Insulation Resistance Tester Specifications
🧪 Insulation Resistance Testing
-
Test Voltages: 50 V, 100 V, 250 V, 500 V, and 1000 V
-
Insulation Resistance Range: 0.01 MΩ to 10 GΩ
-
Accuracy:
-
50 V / 100 V: ±(3% + 5 digits)
-
250 V / 500 V: ±(1.5% + 5 digits)
-
1000 V: ±(1.5% + 5) up to 2 GΩ, ±(10% + 3) above 2 GΩ
-
-
Short Circuit Test Current: ~1 mA
-
Live Circuit Detection: Inhibits insulation test if voltage >30 V is detected
-
Auto Discharge: Yes, for capacitive circuits
-
Polarization Index (PI) & Dielectric Absorption Ratio (DAR): Automatic calculation
-
Compare (Pass/Fail) Function: Yes
🔌 Voltage and Continuity Testing
-
AC/DC Voltage Measurement Range: 0.1 V to 600 V
-
Voltage Accuracy: ±(2% + 3 digits)
-
Continuity Testing Range: Up to 200 Ω
-
Continuity Test Current: >200 mA
🧰 General Features
-
Backlit Display: Yes
-
Remote Test Probe: Included for one-handed operation
-
Automatic Power-Off: Yes
-
Battery Indicator: Yes
🪫 Power
-
Battery Type: 4 × AA (LR6)
-
Battery Life:
-
1000 insulation tests (at 1000 V into 1 MΩ, 5 s on / 25 s off)
-
2500 continuity tests (1 Ω load)
-
📐 Physical Specifications
-
Dimensions: 203 × 100 × 50 mm
-
Weight: Approx. 550 g
🌍 Environmental and Safety
-
Operating Temperature: –20 °C to +55 °C
-
Storage Temperature: –40 °C to +60 °C (without battery)
-
Humidity (Operating): 0–95% RH up to 30 °C, decreasing at higher temperatures
-
Altitude (Operating): Up to 2000 m
-
Drop Test: 1 m drop tested
-
Ingress Protection: IP40
-
Safety Rating: CAT IV 600 V, CAT III 1000 V
✅ Summary Table
Feature | Specification |
---|---|
Test Voltages | 50 V to 1000 V |
Resistance Range | 0.01 MΩ to 10 GΩ |
Voltage Measurement | 0.1 V to 600 V AC/DC |
Continuity Current | >200 mA |
PI/DAR Calculation | Yes |
Display | Backlit LCD |
Safety Rating | CAT IV 600 V |
Dimensions / Weight | 203 × 100 × 50 mm / 550 g |
IP Rating | IP40 |
Battery Life | >1000 insulation tests |
