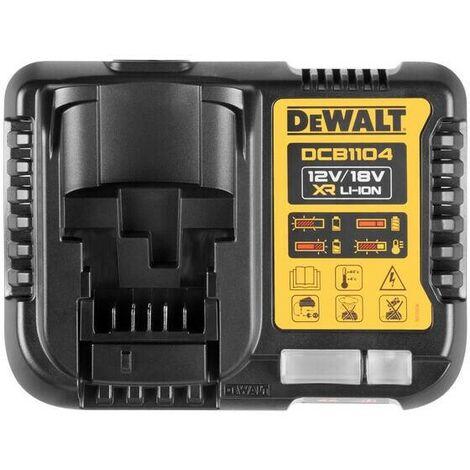

DeWalt DCB1104-GB Slim Battery Charger

Brand: DeWalt
Model: DCB1104-GB
Type: Slim / Compact Lithium-Ion Battery Charger
Region Version: GB (United Kingdom / EU mains spec)

⚡ Electrical Input

• Input Voltage: 230–240 V AC

• Frequency: 50–60 Hz

• Current: Designed for standard mains supply

🔌 Output / Charging

• Output Charging Current: 4.0 amps

• Battery Compatibility:

  • DeWalt XR Li-Ion slide-on batteries

  • 10.8 V XR

  • 12 V XR

  • 14.4 V XR

  • 18 V XR

  • FlexVolt batteries charged in 18 V mode

⏱ Typical Charging Times (Approximate)

(Actual times vary by battery age, condition, and temperature)

• 1.5 Ah: ~25–30 minutes

• 2.0 Ah: ~30–35 minutes

• 4.0 Ah: ~60–75 minutes

• 5.0–6.0 Ah: ~90–135 minutes

• Larger capacity XR packs (9 Ah–12 Ah): ~135–180+ minutes

🔋 Design Features

• Slim, compact form factor for easy transport and mounting

• LED status indicators for: charging, fully charged, fault condition, temperature issues

• Automatic temperature monitoring — protects battery cells during charge

• Slide-on battery interface for secure connection

• Wall-mountable footprint with mounting slots

• Integrated cable management (on some units)

📏 Physical Characteristics

• Weight: Approx. 0.45–0.50 kg

• Dimensions (approx.):

  • Height: ~180 mm

  • Width: ~120 mm

  • Depth: ~90 mm

• Housing: Durable impact-resistant plastic

• Cooling: Passive ventilation slots

📌 Compatibility Notes

• Works with all DeWalt XR Li-Ion slide-on batteries across supported voltages

• FlexVolt packs are charged at the 18 V level in this charger (full FlexVolt 54 V charging requires a high-amp fast charger)

⚠️ Straight-Talk Reality

• Not a fast charger: 4 A output is moderate — good balance of speed vs battery life

• Large batteries take longer: High-capacity packs (e.g., 6 Ah and above) will take significantly more time

• Best used for jobsite, portable, and everyday charging, not rapid turnaround in high-volume environments
